Multiwall Polycarbonate Ridge Profile
Polycarbonate
- Description
- Features
- Reviews

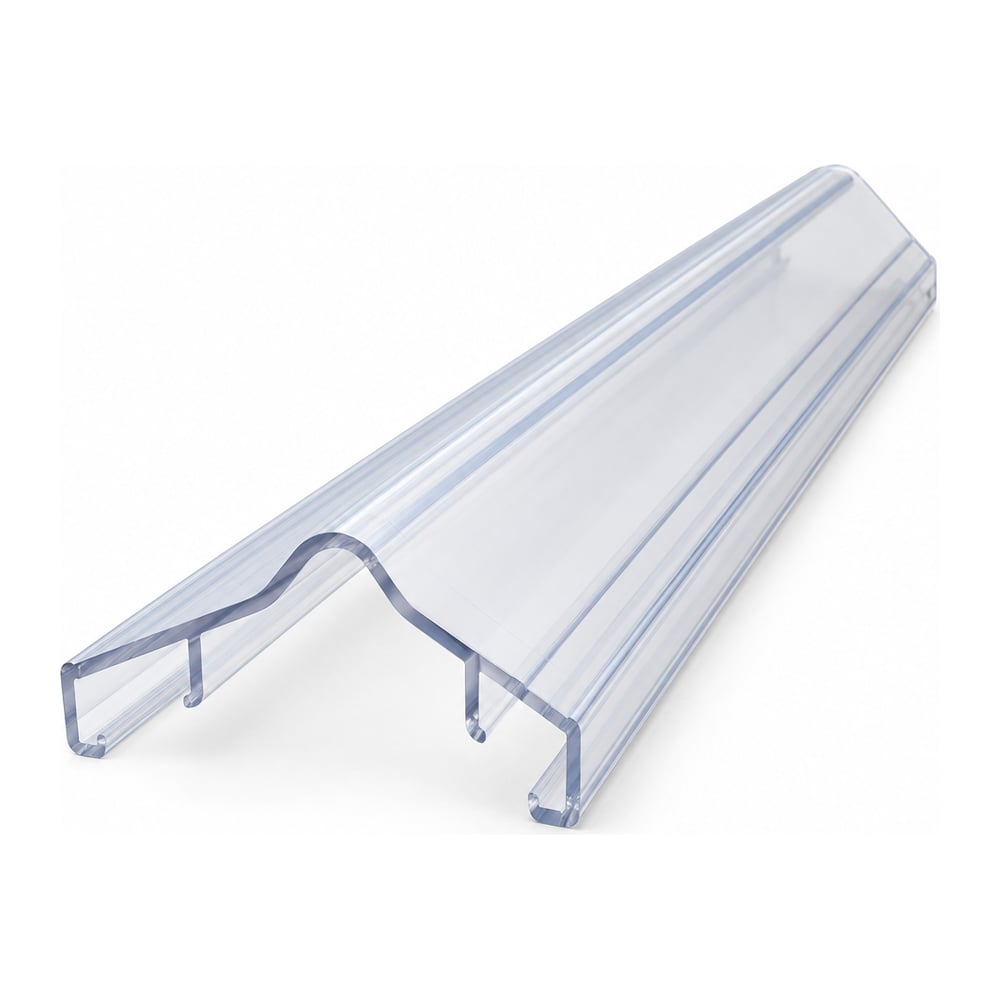

Closes the apex where two glazed slopes meet, carrying both panel ends and shedding water to either side. Sized for 8mm multiwall panel.
The one place a corner or H profile should not be substituted.
In a polycarbonate glazing system the profiles exist so the panel can move. That is why they are dry-fit, why the screw goes through the panel in an oversized hole rather than into the profile, and why adhesive, putty and unapproved sealants void the panel warranty.
- Closes the apex where two glazed slopes meet, carrying both panel ends
- Sized for 8mm multiwall panel
- Sold by the foot
- Dry-fit - no adhesive or putty at the joint
- Screw through the panel, not into the profile
- Oversized holes so the panel can move
- Part of a vented, draining glazing system
- Allow 1/8" panel expansion per 4 feet
| Material | PC |
|---|---|
| Unit of Measure | Ft |
