Multiwall Polycarbonate U Edge Closure Profile
Polycarbonate
- Description
- Features
- Reviews

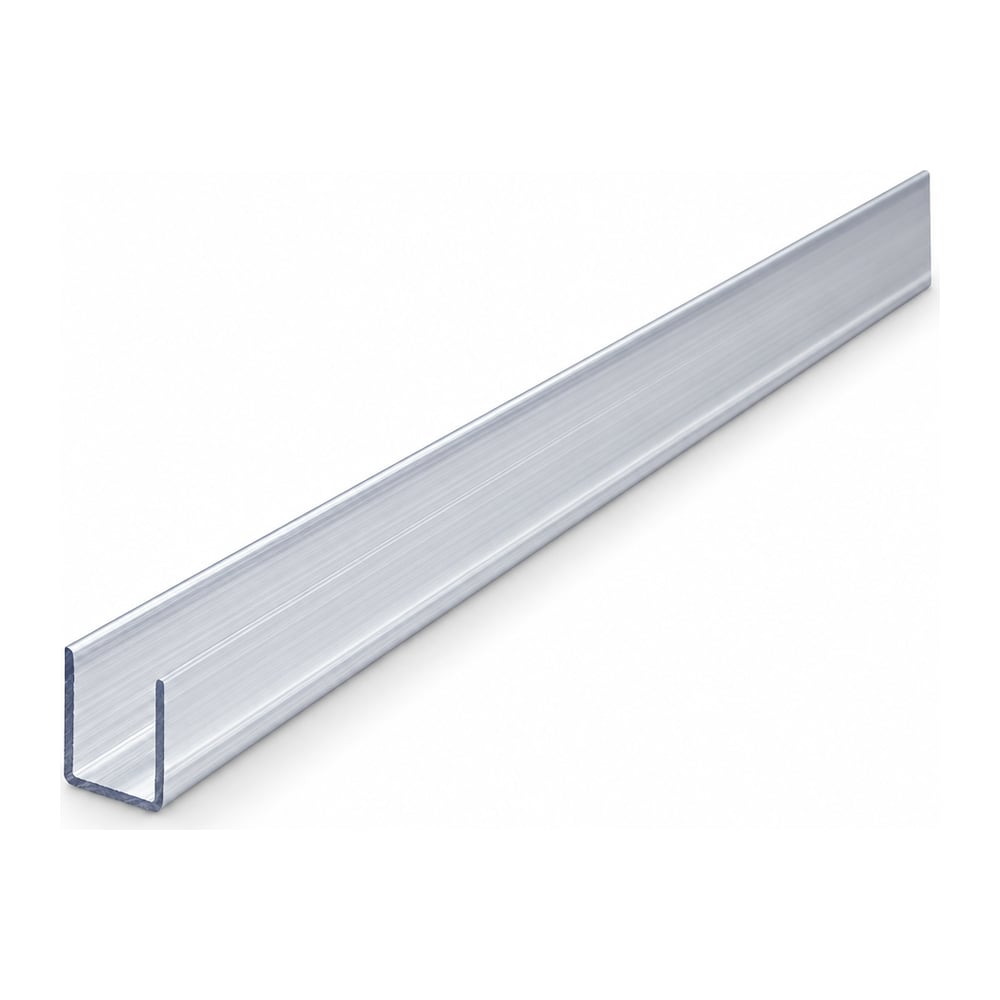

Caps the cut end of a multiwall panel over the closure tape, protecting the tape and sealing the flutes against water, dust and insects while the panel still drains. Sized for 16mm multiwall panel. Anodized.
At the bottom of a run it must be drilled with 1/8" weep holes at 12" centres, or it becomes a water trap instead of a closure.
In a polycarbonate glazing system the profiles exist so the panel can move. That is why they are dry-fit, why the screw goes through the panel in an oversized hole rather than into the profile, and why adhesive, putty and unapproved sealants void the panel warranty.
- Caps the cut end of a multiwall panel over the closure tape, protectin
- Sized for 16mm multiwall panel
- Anodized
- Sold by the foot
- Dry-fit - no adhesive or putty at the joint
- Screw through the panel, not into the profile
- Oversized holes so the panel can move
- Part of a vented, draining glazing system
| Material | PC |
|---|---|
| Unit of Measure | Ft |
